1.5 Inch Disc Rope Socket Wireline Tool String BLQJ Connection

Name: 15 Inch Disc Rope Socket Wireline Tool String BLQJ Connection
Brand: Ruixin
Price: 1 USD

China 1.5 Inch Disc Rope Socket Wireline Tool String BLQJ Connection factory

Brand Name : Ruixin

Model Number : 1.25inch ~2.5inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1 set 2 week

Delivery Time : 2-3 weeks

Packaging Details : Wooden Box

Name : 1.5 inch Wireline Disc And Spring Rope Socket Wireline Tool String

Material : Alloy Steel&Nickel Alloy

Size : 1.25inch~2.5inch

Application : Wireline &Slickline

Type : Disc&Spring

Service : Standard&H2S

Connection : SR,QLS,BLQJ,HDQRJ

Contact Now

1.5 Inch Disc Rope Socket Wireline Tool String BLQJ Connection

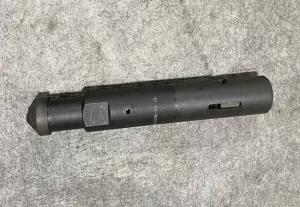

1.5 inch Wireline Disc And Spring Rope Socket Wireline Tool String

I. Introduction

A Wireline Disc And Spring Rope Socket is used to attach wireline to the tool string.

II. General Technical Parameters

Size	Fishing neck	Connection	PN.
1.0＂	0.875＂	5/8UN	W01-02.08.00
1.25＂	1.187＂	15/16UN	W01-02.02.00
1.5＂	1.375＂	15/16UN	W01-02.04.00
1.875＂	1.75＂	1-1/16UN	W01-02.03.00
2.125＂	1.75＂	1-1/16UN	W01-02.09.00
2.5＂	2.313＂	1-9/16UN	W01-02.10.00

Note: More customized parts are available upon request.

III. Structure characteristics

The Wireline Disc And Spring Rope Socket consists of a body with an external

fishing neck, spring, guide and wire carrier.

The wireline is passed through the body, spring and guide before being wrapped

tightly around the wire carrier. The short end of the wireline is firmly wrapped

around the long end using several close wraps. A clean break made close to

the last wrap allows the spring and guide to pass over the wraps. The knot is

then installed into the body.

1.5 Inch Disc Rope Socket Wireline Tool String BLQJ Connection

Tools Can Be Manufactured To Any Size Required. Welcome to contact us at any time.
