Brand Name : Ruixin
Model Number : 1.5inch 1.875inch 2inch
Certification : API
Place of Origin : China Baoji
MOQ : 1
Payment Terms : T/T
Delivery Time : 2-4 weeks
Supply Ability : 1 set 2 weeks
Packaging Details : Wooden Box
Name : X Line Running Tools Wireline Running Tool
Material : Alloy Steel&Nickel Alloy
Size : 1.5inch~3.813inch
FN : 1inch~3.125inch
Application : Slickline Wireline
Service : STD&H2S
1.5 Inch Wireline Running Tool X Line Running Tool
X Line Running Tools Wireline Running Tool
ⅠIntroduction
X Line Running Tools Wireline Running Tool is used to run and set Otis X and XN Lock Mandrels,
The X Line Running Tool is designed to deploy and set sub surface flow control devices equipped
with X and XN lock mandrels, landing in corresponding selective or no-go landing nipples
Ⅱ. Features and advantages
•The tool can be run in either Selective or Non-Selective position.
• Fishing neck fitted with industry standard connections
Ⅲ. General Technical Parameters
| Nominal Size | Actual OD | Fishing Neck | Top Connection | Bottom Connection | |
| 1.5″ | 1.41″ | 1.188″ | 15/16″-10UN | 3/8-16UN″ | |
| 1.625″ | 1.593″ | 1.188″ | 15/16″-10UN | 3/8-16UN″ | |
| 1.875″ | 1.75″ | 1.375″ | 15/16″-10UN | 1/2-13UN″ | |
| 2.313″ | 2.175″ | 1.75″ | 15/16″-10UN | 5/8-11UN″ | |
| 2.75″ | 2.718″ | 2.313″ | 1-1/16″-10UN | 2/4-10UN | |
| 2.813″ | 2.72″ | 2.313″ | 1-1/16″-10UN | 3/4-10UN | |
| 2.875″ | 2.938″ | 2.313″ | 1-1/16″-10UN | 3/4-10UN | |
| 3.313″ | 3.406″ | 2.313″ | 1-1/16″-10UN | 1-3/8-12UN | |
| 3.813″ | 3.890″ | 2.313″ | 1-1/16″-10UN | 2-1/8-12UN | |
Welcome to contact us at any time.
|   |

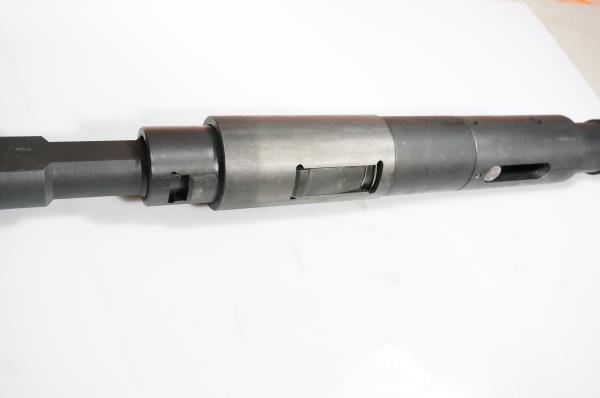

| 1.5 Inch Wireline Running Tool X Line Running Tool Images |
