Nickel Alloy GS Wireline Pulling Tool Slickline Service

Nickel Alloy GS Wireline Pulling Tool Slickline Service

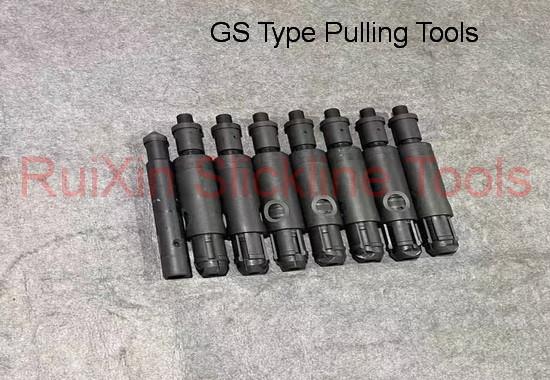

GS Pulling Tool Wireline Pulling Tool

I. Introduction:

The GS type pulling tool is used to pull inner fishing necks, which can cut off and release an object downward and is usually is used to throw and fishing the lock cylinder, packer, bridge plug and others with inner fishing necks. After connecting the GU joint (upward shear joint), it can be converted to be an upward shear and releasing tool.

II. General Technical Parameters:

Note: More customized parts are available upon request.

III. Structural features:

The GS type pulling tool While the tool is fishing and when the fishing claw just touches the mouth end of the inner fishing neck, it will retreat and fall in the position where the mandrel diameter is a little small and then is taken back; after the fishing claw enters into the inner fishing neck completely, the fishing claw will splay immediately with the thrust of compressed secondary spring.

While throwing it and when the skirt withstands the end face of the inner fishing neck, the tool will move downward can cut off the shear pin because of the relative motion of mandrel and shear pin seat; under the function of main spring and spring seat, the fishing claw and mandrel have relative motion and then the fishing claw withdraws.

The fixed seat of claw can make the fishing claws distributed uniformly and act synchronously.

IV. Maintenance:

1. After disassembling the tool, inspect the damages of all parts and change the damaged parts.

2. While assembling the tool, the thread surface shall be painted with a thin layer of grease.

3. After assembly, the connection threads of fishing neck shall be protected with thread protector and marked for standby application.

Welcome to contact us at any time.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
