Nickel Alloy 3.5 Inch Waxing Drill Gauge Cutter Wireline

Name: Nickel Alloy 35 Inch Waxing Drill Gauge Cutter Wireline
Brand: Ruixin
Price: 1 USD

Brand Name : Ruixin

Model Number : 2.875inch~3.5inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T

Supply Ability : 1 set 3 weeks

Delivery Time : 3-4 weeks

Packaging Details : Wooden Box

Name : 3.5 Inch Waxing Drill Gauge Cutter Wireline

Szie : 2.875inch~3.5inch

Material : Alloy Steel&Nickel Alloy

FN : 1.375inch

Connection : SR,QLS,BLQJ,HDQRJ

Application : Slickline& Wireline

Advantage : Broaches can be manufactured in many sizes

Contact Now

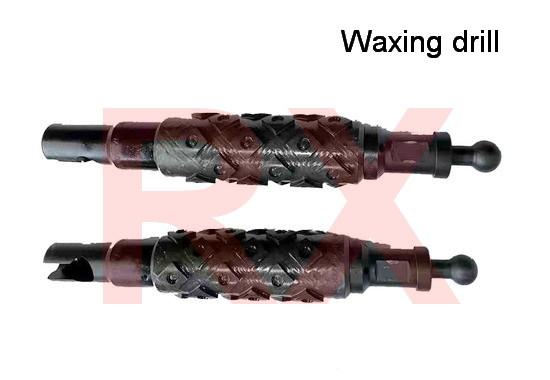

3.5 Inch Waxing Drill Gauge Cutter Wireline

I. Overview:
The Waxing drill is a common tool for dewaxing using wire work tools.
II. Technical parameters of common specifications:

Tubing specification	Actual outer diameter	Fishing neck	Connection
2-7/8″	52mm	1.375″	15/16″-10UN
	54mm	1.375″	15/16″-10UN
	56mm	1.375″	15/16″-10UN
3-1/2″	63.5mm	1.375″	15/16″-10UN
	68mm	1.375″	15/16″-10UN
	72mm	1.375″	15/16″-10UN

III. matters needing attention:
1, in order to ensure free rotation of the tool, it must be connected to a rotary joint in the tool string below the basic cord cap to prevent distortion of the wire.
2, in addition to high wax wax portion of the drill bit the hardness, safekeeping after use, to avoid collision with a hard object, the use of impact.
3. After using the connecting thread, apply grease and place it with a protective wire.

Welcome to contact us at any time.
