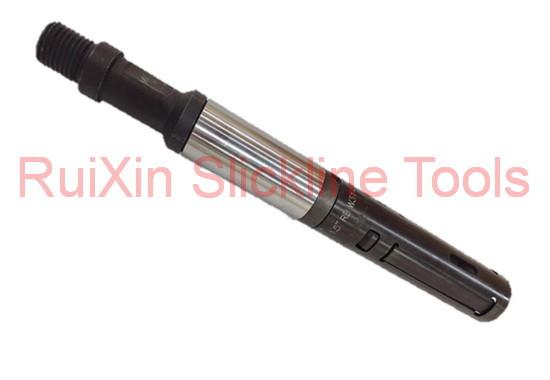

Alloy Steel RB Type Wireline Pulling Tool 1.5 Inch

Name: Alloy Steel RB Type Wireline Pulling Tool 15 Inch
Brand: Ruixin
Price: 1 USD

Brand Name : Ruixin

Model Number : 1.5inch 2inch 2.5inch,3inch,4inch

Certification : API

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1 set 3 weeks

Delivery Time : 3-4 weeks

Packaging Details : Wooden Box

Name : 1.5 inch RB Type Pulling Tool Wireline Pulling Tool

Size : 1.5inch

Material : Alloy Steel&Nickel Alloy

Fish Neck : 1.187inch

Actual OD : 1.43inch

To Engage Size : 1.187inch

Connection : SR QLS HDQRJ, BLQJ

Contact Now

1.5 Inch RB Type Pulling Tool Wireline Pulling Tool

I. Introduction:

A R type pulling tool is an outer pulling tool, which can grasp the shoulder of the outer fishing neck with special fishing claw and move upward to release the claw, and which is divided into three types: RB, RS and RJ.
II. General Technical Parameters:

Size	Fishing neck	Connection	PN.
Size	Fishing neck	Connection	PN.
1.5＂	1.187＂	15/16-10UN	W0-0.0*.00
2＂	1.375＂	15/16-10UN	W0-0.0*.00
2.5＂	1.375＂	15/16-10UN	W0-0.0*.00
3＂	2.313＂	1-1/16-10UN	W0-0.0*.00
4＂	2.313＂	1-1/16-10UN	W0-0.0*.00

Note. Pay attention to the model of grasping distance when ordering goods, More customized parts are available upon request.

III. Structural features:

The R-type pulling tool is composed of upper contact, outer cylinder, sleeve, shear pin sheath, main spring, secondary spring, spring seat, fishing claw, shear pin, etc.

IV. Notes:

1. Before lowering the tool, inspect whether the connection threads of the tool are loose.

2. Maintain it in time after use.

Welcome to contact us at any time.
