SR 2 Inch GU Adapter Wireline Pulling Tool Nickel Alloy

Name: SR 2 Inch GU Adapter Wireline Pulling Tool Nickel Alloy
Brand: Ruixin
Price: 1 USD

Brand Name : Ruixin

Model Number : 2inch 2.5inch 3inch 3.5inch 4inch 5inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1 set 2 weeks

Delivery Time : 2-3 weeks

Packaging Details : Wooden Box

Name : 2 inch GU Adapter Wireline Pulling Tool

Size : 2inch 2.5inch 3inch 3.5inch 4inch 5inch

Material : Alloy Steel&Nickel Alloy

Fish Neck : 1.375inch 1.75inch 2.313inch 3.125inch

Actual OD : 1.81inch~

Fishing OD : 1.375inch~2.61inch

Connection : SR,QLS,BLQJ,HDQRJ

Contact Now

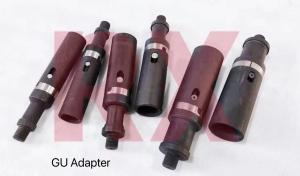

2 inch GU Adapter Wireline Pulling Tool

I. Introduction

GU Adapter is used in connection with GS pulling tool, and they form GR Pulling Tool.

II.Technical parameters of common specifications

Szie	Actual OD	FN	Fishing OD	Connection	Lower connection thread
2″	1.81″	1.375″	1.38″	15/16″-10UN	1/2-13UN″
2.5″	2.25″	1.375″	1.81″	15/16″-10UN	5/8-11UN″
3″	2.72″	1.75″	2.31″	1-1/16″-10UN	5/8-11UN″
3.5″	3.11″	2.313″	2.62″	1-1/16″-10UN	5/8-11UN″

Technical parameters can also be according to user requirements

III. Maintenance

1. After the tool is disassembled, check the damage of each component and replace the

damaged parts.

2. When assembling, apply a thin layer of grease on the thread surface.

3. After assembly, the fishing neck is attached with thread protector and marked for later use.

Welcome to contact us at any time.
