Cylindrical 2ft Wireline Slickline Equipment 15/16UN Connection

Name: Cylindrical 2ft Wireline Slickline Equipment 1516UN Connection
Brand: Ruixin
Price: 1 USD

Brand Name : Ruixin

Model Number : 1.5inch 1.875inch 2inch 2.125inch

Certification : API

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T

Supply Ability : 1 set 2 weeks

Delivery Time : 2-3 weeks

Packaging Details : Wooden Box

Name : The Ordinary Weight Stem bar 2ft Wireline Tool String

Size : 1.25inch 1.5inch 2.125inch 2.5inch

Length : 24inch 36inch 60inch

Fishneck O.D. : 1.187inch-2.313inch

Connections : 15/16UN 1-1/16UN 1-9/16UN

Contact Now

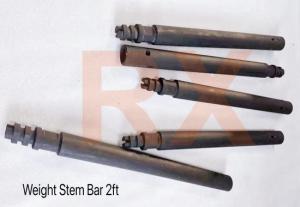

The Ordinary Weight Stem Bar 2ft Wireline Tool String

I. Overview:
The ordinary weight stem bar is used to provide the weight required for the operation, so that the tool string can overcome the pressure acting on its section and the resistance of the packing in the packing box and fall.
The ordinary weight stem bar is cylindrical in shape, with a male buckle and a fishing neck at the upper end, and a female buckle at the lower end.The weight stem bars have different lengths and sizes.
II. Common technical parameters:

Stem O.D	Fishneck O.D.	Connections	Length
1.25"	1.187"	15/16UN	24"
1.25"	1.187"	15/16UN	36"
1.25"	1.187"	15/16UN	60"
1.5"	1.375"	15/16UN	24"
1.5"	1.375"	15/16UN	36"
1.5"	1.375"	15/16UN	60"
2.125"	1.75"	1-1/16UN	24"
2.125"	1.75"	1-1/16UN	36"
2.125"	1.75"	1-1/16UN	60"
2.5"	2.313"	1-9/16UN	24"
2.5"	2.313"	1-9/16UN	36"
2.5"	2.313"	1-9/16UN	60"

III. Structural features and use:
The ordinary weight stem bar has a simple structure and is easy to use. It is the most commonly used weighting bar. When using it, you can choose an appropriate weight for work.
IV, matters needing attention:
1. Ordinary weight stem are the simplest and most commonly used weighting rods. Both ends of the thread must be connected firmly during use, and the appropriate weighting rod must be selected according to the actual situation during operation.
2. After using the weighting bar, maintain it in time to prolong the service life of the tool.

Tools can be manufactured to any size required.

Welcome to contact us at any time.
