5 Inch Wireline Tool Tubing Swage With Quenching Tempering

Name: 5 Inch Wireline Tool Tubing Swage With Quenching Tempering
Brand: Ruixin
Price: 1 USD

Brand Name : Ruixin

Model Number : 1.25inch~5inch

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1 set 2 weeks

Delivery Time : 2-3 weeks

Packaging Details : Wooden Box

Name : Tubing swage Wireline Tool String

Size : 1.25inch~5inch

Material : Alloy Steel&Nickel Alloy

Fish Neck : 1.187inch 1.375inch 1.75inch 2.313inch

Connection : SR,QLS,BLQJ,HDQRJ

Use : Wireline &Slickline

Advantage : Adjust the ID of the tubing to ensure smooth passage of the tool

Contact Now

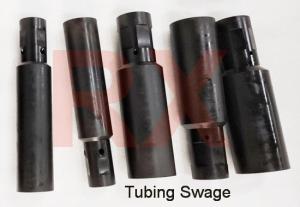

Tubing swage Wireline Tool String

I. Introduction

Tubing swage is a tool to shape the changed diameter of to guarantee that the downhole device can

pass smoothly or to get through the flavedo-type blocks at the end of tubing.

II. General Technical Parameters

OD	Fishing neck	Connection t	PN
1.25＂-1.5＂	1.187＂	15/16-10UN	W21-03.**.00
1.5＂-2＂	1.375＂	15/16-10UN	W21-03.**.00
2＂-2.5＂	1.375＂	15/16-10UN	W21-03.**.00
2.5＂-3＂	1.75＂	1-1/16-10UN	W21-03.**.00
3＂-4＂	1.75＂	1-1/16-10UN	W21-03.**.00
4＂-5＂	2.313＂	1-9/16-10UN	W21-03.**.00

Note:more customized parts are available upon request.

III. Structural features:

The top of the tubing swage has external threads (or quick male joint) and fishing neck; the inner diameter

of waist is about equal to that of the deformed oil pipe, so there are air holes or drain holes in the middle,

and the pipe tapers off from the middle to both ends; the bottom also can be processed with threads to connect

with tools.

The whole body of tubing swage is made of alloy steel, and the hardness of the part for shaping reaches

43～45HRC through quenching and tempering.

Welcome to contact us at any time.
