QLS Connection Wireline Tool String Joint Nickel Alloy 2.5 Inch

Name: QLS Connection Wireline Tool String Joint Nickel Alloy 25 Inch
Brand: Ruixin
Price: 1 USD

Brand Name : Ruixin

Model Number : 1.25inch ,1.5inch，1.875inch，2.5inch.

Certification : API Q1

Place of Origin : China Baoji

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 1 set 2 weeks

Delivery Time : 2-4 weeks

Packaging Details : Wooden Box

Name : QLS Quick Joint Wireline Tool String

Material : Alloy Steel&Nickel Alloy

Fesh Neck : 1.187inch~2.313inch

Size : 1.25inch ,1.5inch，1.875inch，2.5inch.

Use : Wireline &Slickline

Connection : SR QLS HDQRJ, BLQJ

Service : Standard &H2S

Contact Now

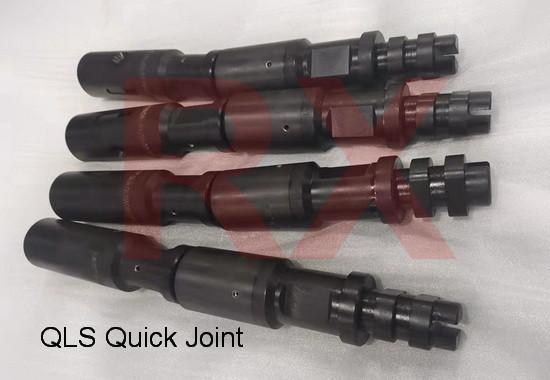

QLS Quick Joint Wireline Tool String

I.Overview:

The QLS quick Joint is the connector of the wire tool string, which is used to replace the conventional thread connection.

II.Parameter:

Size	FN	Connection
1.25＂	1.187＂	15/16UN
1.5＂	1.375＂	15/16UN
1.875＂	1.75＂	1-1/16UN
2.5＂	2.313＂	1-9/16UN

III.Structural features

QLS quick joint form the integral part of any wireline tool, reducing the deficiencies of secondary thread and pin connections.

1. Safe and simple connection features;

2. The average extension of impact load on the three ball bearing surfaces makes the tool more suitable for heavy load or long-term steel wire operation;

3. Easy loading and unloading of plunger type gun bolt, which can be safely released in case of mechanical stuck without maintenance;

4, There is no danger of excessive tightening of the non-thread buckle, so there is no danger of sliding thread;

5. Higher connection strength than the thread;

6. Simple and reliable 1/4 turn rotation;

7. Press the button to rotate and release.

IV.Attention

When not in use for the time being, apply grease to the connecting thread and put away with the wire guard.
