Quick Union Wireline Lubricator Hydraulic Pressure Control
I. Introduction
The Wireline Lubricator is a pipe with a quick coupling and can withstand high pressure, which is used to accommodate downhole tools in and out of the well under Lubricator. The lower part of the blowout preventer is connected with the blowout Lubricator, and the upper part is connected with the blowout Lubricator box or grease injection sealing system. The length of the blowout Lubricator is generally 8 feet, but there are also 4 feet and 7 feet. During operation, the combination of multiple lubricators shall be selected according to the length of running tools. Nozzle can be divided into two types: upper section and lower section. The upper lubricator contains basic tool strings such as rope cap, weighting rod and jar. The lower lubricator needs to accommodate the downhole device, and the pipe has a pressure relief hole. After the Lubricator tap is installed and the pressure relief valve is installed, the pressure in the well can be read and released.
II. General Technical Parameters
OTIS Quick Union
| Bore | Work Pressure | Service | Connection | Seal Dia. |
| 2.5＂ | 5K 10K | Std H2S | 5＂-4ACME | 3.5＂ |
| 3＂ | 5K | H2S | 5＂-4ACME | 3.5＂ |
| 3＂ | 10K | Std | 5＂-4ACME | 3.5＂ |
| 3＂ | 10K | Std H2S | 5-3/4＂-4ACME | 4＂ |
| 2.5＂ | 15K | H2S | 5-3/4＂-4ACME | 4＂ |
| 4＂ | 5K 10K | Std | 6-1/2＂-4ACME | 4.75＂ |
| 3＂ | 15K | Std H2S | 7-1/2＂-4ACME | 5.5＂ |
| 5＂ | 5K | Std H2S | 8-1/4＂-4ACME | 6.188＂ |
| 4＂ | 10K | Std H2S | 8-3/8＂-4ACME | 5.25＂ |
| 5＂ | 5K 10K | Std H2S | 9＂-4ACME | 6.75＂ |
| 4＂ | 15K | Std H2S | 9-1/2＂-4ACME | 6.25＂ |
| 6.38＂ | 10K | Std H2S | 11-1/2＂-4ACME | 8.25＂ |
III. Pressure Test
1. Install the pressure test connector and connect the pressure test pipeline; 2. Start the pressure test pump for pressure test: pressurize it to the test pressure, keep the pressure for 15 minutes without leakage, and fill in the test record card.
IV. Routine maintenance:
1. After each use, the sealing ring must be replaced;
2. When not in use for the time being, take silk protector for storage.
Welcome to contact us at any time.
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
Product Tags:
|
|

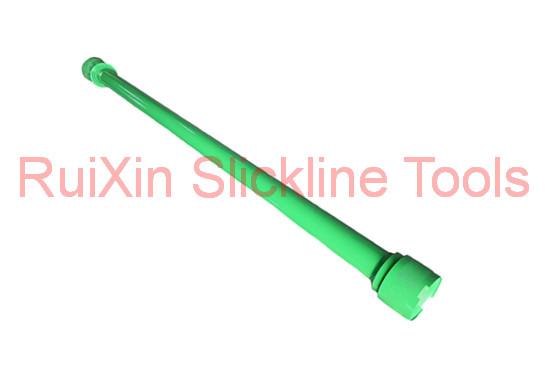

Hydraulic Quick Union Wireline Lubricator Pressure Control Images
|
