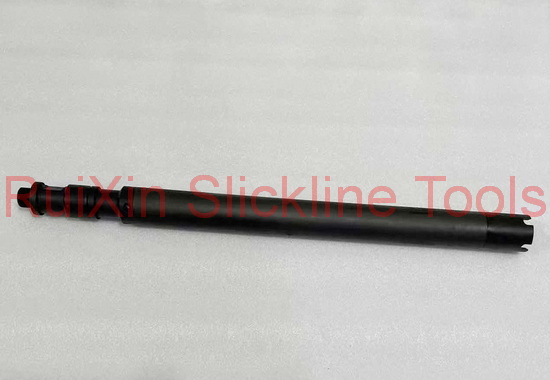

Wear Resistant Sand Pump Bailer Wireline Tool String 1.875 Inch

Wear Resistant Sand Pump Bailer 1.875 Inch Wireline Tool String

Sand Pump Bailer Wireline Tool String
I. Introduction:
The Sand Pump Bailer provides an effective and efficient method of recovering loose sand and debris from within the well bore.
The Sand Pump Bailer incorporates a piston within a cylinder which when stroked upwards, draws the debris into the cylinder chamber. A check valve device prevents the debris from dropping out of the cylinder during recovery back to surface.
II. General Technical Parameters

Note. More customized parts are available upon request
III. Structural features
When operating it, lift the upper contact and then the piston rod and piston connected with it will move upward. At this moment, the steel ball also will move upward and the rock waste in the well will be sucked up; when lowering the upper contact, the steel ball will fall in the hole of pipe shoe,
and the rock waste sucked up will be blocked by the steel ball and kept in the barrel; suck and release it repeatedly until the barrel is filled up with rock waste, and then take out the tool. The cylindrical pin plays a role of blocking the upward movement of steel ball.
Welcome to contact us at any time.

◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Sand Pump Bailer Wear Resistant

1.875 Inch Sand Pump Bailer

Wireline Tool String 1.875 Inch

Wear Resistant Sand Pump Bailer Wireline Tool String 1.875 Inch Images
