Overview

The RZG plug can be installed at the downhole location joint and features bidirectional balance. Plug the well nowadays into the tool to keep balance valve in open position, fixed in the welded joint is located and go into the tool, stabilizer bar will be pushed to the sealing of balance hole position and locked.This RZG plugs is of the bottom constriction neck type,and the pressure can be balanced by the retractable prong; When the RZG plugs is lowered into the well, the prong is kept in a state of pressure balance by the running tool into the well. After it is fixed on the landing nipple, the prong will be pushed to the position where the balance hole can be sealed and locked. When fishing the plug, first pull out the prong,then pull out the plug.

​General Parameters

Structural features

The RZG plug is composed of a G-type balance valve and a Z-type lock mandrel etc. Z function locating fixed lock, the key can make the lock locking slot in joint, sit quietly. G type balancing valve in the bottom Z lock mandrel balancing valve top seal assembly, can be sealed at the ends of the balancing valve and pressure, balancing valve bottom has a balance valve, well under the plug, the balance beam is into the tool to maintain the pressure balance, under the fixed after the joint is located, the balance beam will be pushed to the sealing of balance hole location and was locked. Salvage plug, remove to balance beam first, then remove to plug in ontology.

Size: 1.875″

Fishing neck: 1.375″

Applicable Landing nipple: R Type 1.875″

Running tools : C-1Running tools 2-3/8″

Pulling tools: JDC/JUC Type 2″and B Probe

V Packing : 1.875″

Any size can be customized according to customer requirements.

Matters need attention

1.Before going down the well, check whether the sealing ring, sealing assembly and the opening and closing of the balance bar are in good condition.

2. After using, greasing dustproof preservation, save separate seal assembly with grease.

◆About Baoji RuiXin Slickline Tools

Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.

◆Strict quality control system

Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.

◆Hard work, after-sales service

On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.

Welcome to contact us at any time.

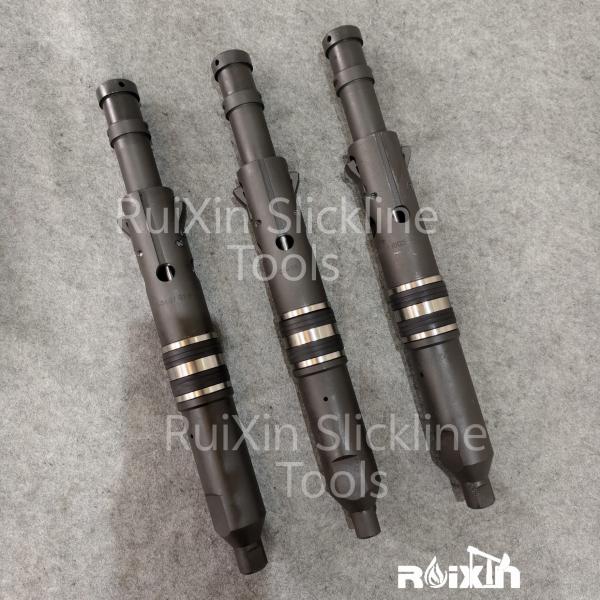

Blanking Plugs RZG 1.875inch Wireline Slickine R Lock Mandrels Images
